How to install Android Marshmallow on VMware?

In this article, I am going to show you how to install android marshmallow on VMware workstation. Android 6.0 “marshmallow” is a version of the Android mobile operating system developed by Google, spanning versions between 6.0 in October 2015. Android Marshmallow is visually similar to its predecessor, Lollipop, in many ways. Google’s Material Design language is now more pervasive than ever before, and the main areas of the UI – settings, notifications shade, and navigation – remain the same. But Marshmallow does have some differences in appearance and new features.

Whenever your computer feels slow, or it is not working well, you have only two options for it, recovery or installing windows. Windows and Android OS are almost the same. VMware workstation or VirtualBox is also the same, both of them are for virtualisation.

Install Android Marshmallow on VMware

Firstly, Download the materials below:

Create Virtual Machine for Marshmallow

Step #1. When you have downloaded the source files, first install VMware. After installing, open VMware and click on Create a new Virtual Machine.

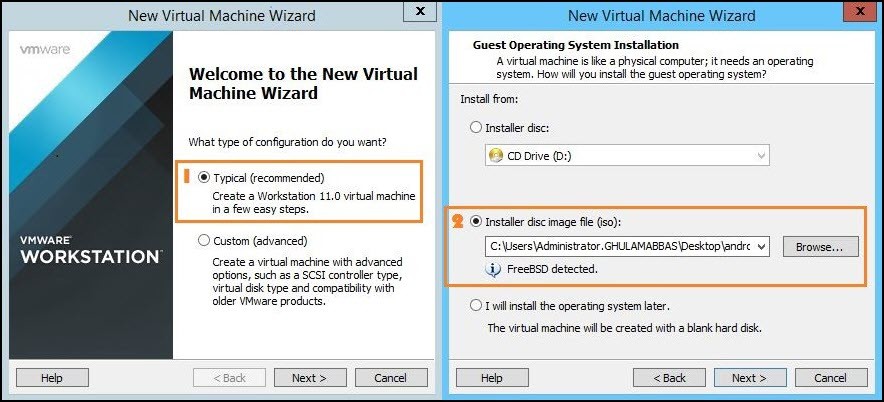

Step #2. Now select Typical (Recommended) and click next. Then select Installer disc image file (ISO) and click Browse to choose marshmallow android ISO file that you download from the link above. Finally, click Next.

New Virtual Machine

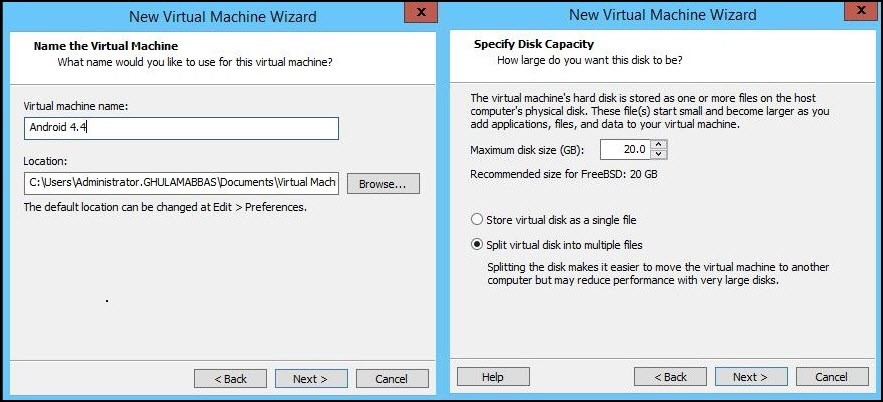

Step #3. Give a name to your virtual Machine and browser the location of the virtual machine, where you want to save your VM. On next step, you need to specify the size for your disk. By Maximum its size is 20 GB. After specifying click next.

Name Virtual Machine

Play Marshmallow Virtual Machine

Step #4. If you have done all the above steps, after the specifying size of your disk, click Finish. The automatically virtual machine will power on, and you will face this window like the screenshot. In this window you have four options of the boot, you have to select the 4^th which is Installation- Install Android-x86 to hard disk.

Install Page

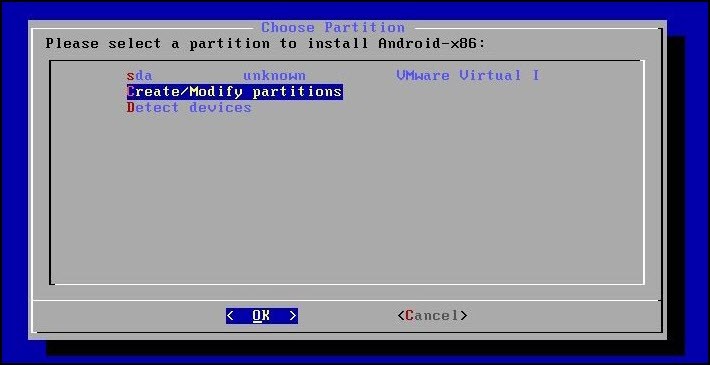

Step #5. After reaching from boot options, you will be direct to partition window, in this window select Create/Modify Partitions and hit enter. In further steps, you will modify every step.

Choose Partition

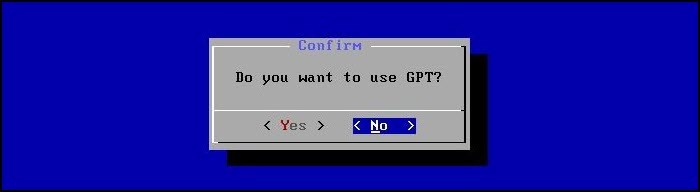

Step #6. When it asks for GPT Partition, select No and hit enter.

Confirmed GPT

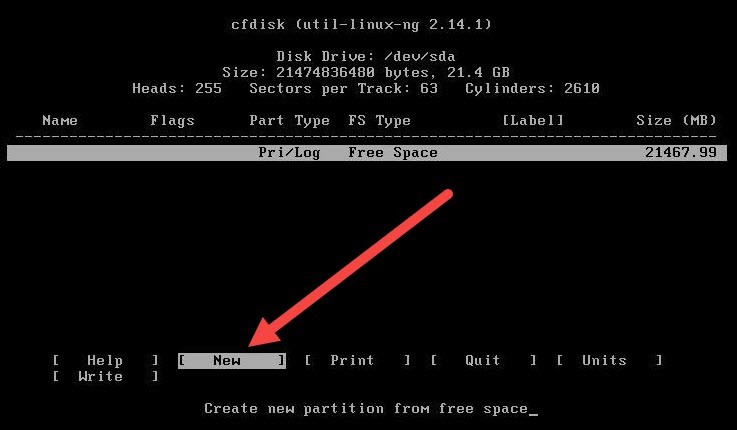

Step #7. From here, you are going to modify your partition. The first one is to create a new partition. Select New and hit enter on the keyboard.

New Partition

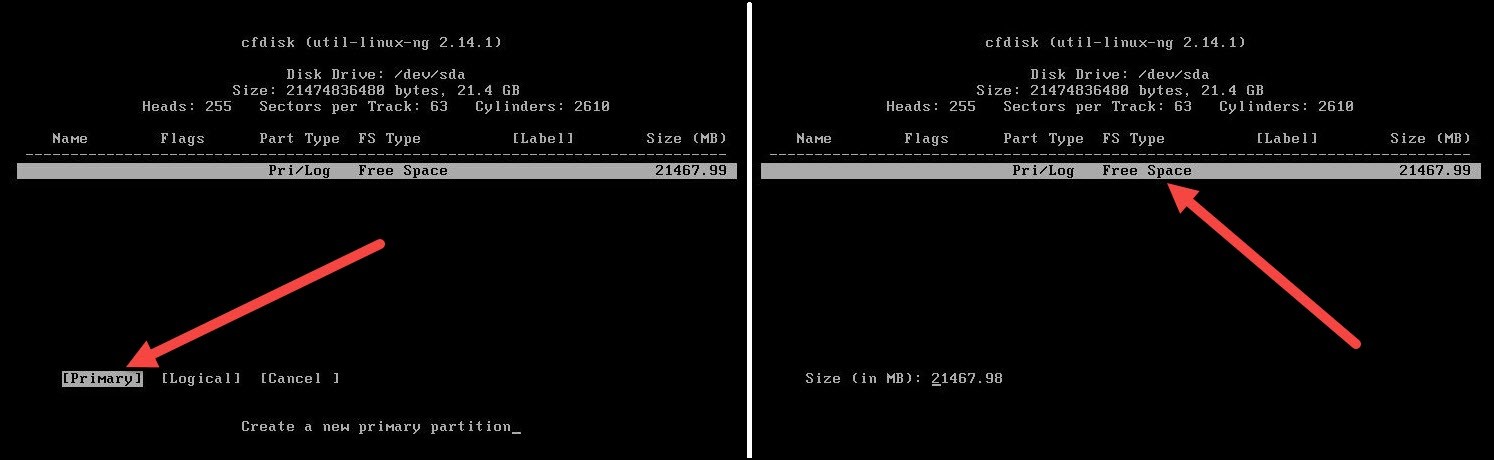

Step #8. Now you need to verify type partition, select Primary and hit Enter. By Pressing Enter, you will be direct to the size of your disk, leave it as default and press enter again. And it will delete all the things on the drive which you had created.

New Primary

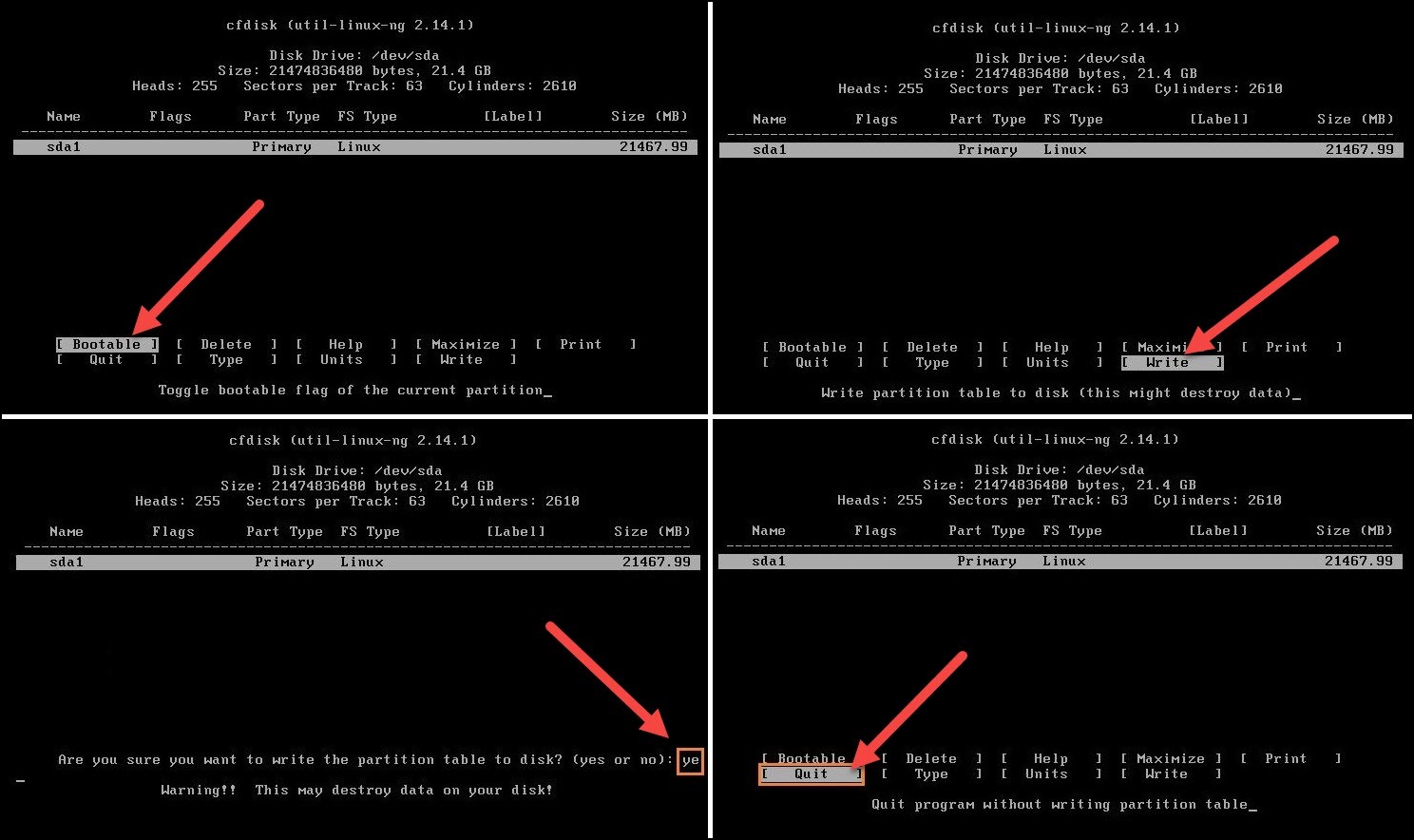

Step #9. For the next four steps, follow the instructions in the image. With Arrows key move right and left select the option which is mentioned in the picture.

Select Bootable

Step #10. After selecting Quit, It will ask you again to verify the partition to install Android 86, what you need is to choose the first one which is sda1.

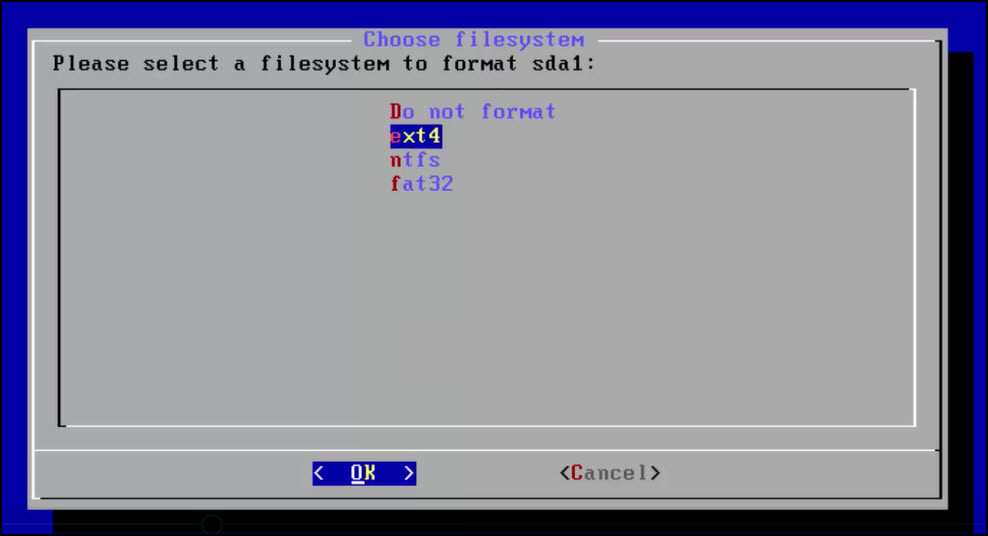

Step #11. This time for the filesystem to format the sad1 Disk, select ext4 and hit enter. Learn more about these types of format.

FAT32: Read on Wikipedia
NTFS: Read on Wikipedia
Ext4: Read on Wikipedia

Format Style

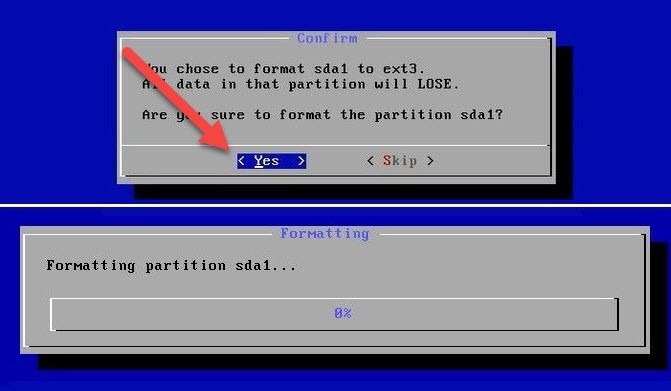

Step #12. After selecting ext4 format style, it will ask you to confirm, select Yes and hit enter like the screenshot. Under that, you can see the format Process.

Format Process

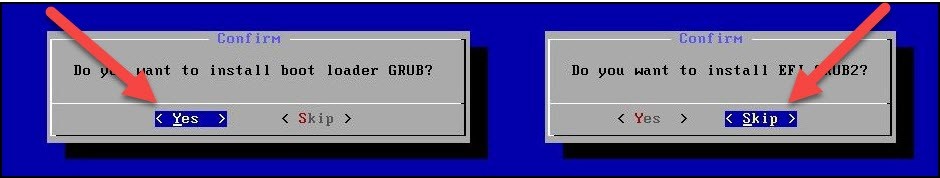

Step #13. When formatting the disk was completed you need to install a Loader, for boot loader click, Yes but for EFI select skip, like the screenshot. Learn more about GRUBs and why I selected Grub.

GRUB2 is a bootloader with support for modern-day computer systems. It is meant to replace the older GRUB boot loader (now referred to as “GRUB Legacy”). GRUB2 has an entirely separate code base from GRUB Legacy and boasts features such as a new shell-like syntax which permits advanced scripting capabilities. Current GRUB Legacy users are encouraged to migrate their systems to GRUB2.

Bootloader

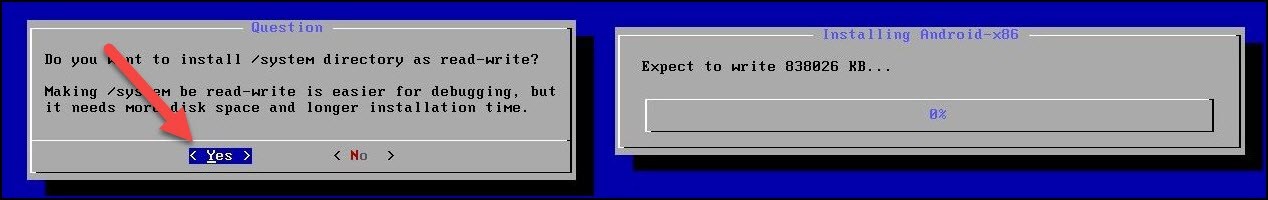

Step #14. For the system, directory select Yes and the Process will move on like the screenshot. Learn more about System Directory.

System Directory & Android Installing

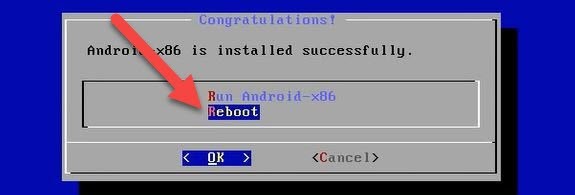

Step #15. Congratulations, you have installed Android Marshmallow on VMware. For the last step, select Reboot to restart the Guest OS in VMware.

Reboot

Step #16. After rebooting you will need to confirm your name, Gmail account and some other essential things, then you are done.

Conclusion

This was all about, how to install android marshmallow on VMware workstation. I hope you have learned this article, and I hope you will ask your questions, give us your suggestions, opinion about what articles we have to write. If you faced any problem tell us below by comment, Feel free to tell us. We’re waiting for your suggestion.

How to Take and Use Snapshots on VirtualBox? Previous post

Top 10 New iOS 9.3.3 Jailbreak Tweaks Next post

Faiz

I am the CEO of wikigain.com and a network instructor. Here is my online pictorial notebook. I would like to write and share my experience through this website for computer enthusiasts, how to guides and technology geeks.

53 Comments

Ans plzz May 19, 2020 at 8:09 PM Reply

Will it work on vmware workstation 9
JS January 3, 2018 at 1:58 PM Reply

google play service has been stopped on welcome screen. what to do??? plz help me
Benthe1 December 29, 2017 at 3:07 AM Reply

I installed 7.1 x64 on VMWare server 6.1 and had the issue where it stopped at the “root@x86:/ #” prompt after installation and would not start the graphical interface. Here is the fix for me: Arrow down and choose the install option, hit the tab key to edit, add “nomodeset” without the quotes at the end, and hit enter. Now when you install and reboot it should work just fine. Hope this helps.
Jair Adriano September 29, 2017 at 6:32 PM Reply

Very good
1. Mukhtar Jafari September 30, 2017 at 2:03 PM Reply

  Thanks
Niezken Wahyu Divilo August 14, 2017 at 12:57 PM Reply

Why i stucked on “Just a sec…” screen right after the Language selection? It not even moved to the checking connection part…
1. Niezken Wahyu Divilo August 14, 2017 at 2:27 PM Reply

  solved, work right after several times reboothing… But why mine always showing black screen when i leave it for some minutes? Is that a screen server? But i cant make it work again, except i restart the VM-__- any suggestion?
Trismegisto May 3, 2017 at 5:00 PM Reply

How to get full screen?
1. Faiz Orz Post authorMay 28, 2017 at 6:21 PM Reply

  You can’t get full screen because the VMware team does not support it.
bob March 31, 2017 at 11:15 PM Reply

After selecting ext4 (step 11) and “yes” (step 12) VMware shows “Error Cannot mount /dev/sda1” AND “Do you want to format it” I select “yes” and it returns to the “Choose filesystem” page and it loops. This is attempting install in VMware 6.0.3 build-1895310 in Windows 7 Home Premium.
1. Mukhtar Jafari April 2, 2017 at 3:49 PM Reply

  Did you download Marshmallow?
Azeem March 31, 2017 at 8:33 PM Reply

i m getting error of “The CPU has been disabled by the guest operation system” while installing android marshmellow.
behrooz March 28, 2017 at 4:55 PM Reply

does not pass from android logo?
1. Mukhtar Jafari March 28, 2017 at 9:19 PM Reply

  Enable 3D Graphic Acceleration
2. Paul July 16, 2017 at 4:07 PM Reply

  i enabled 3d graphics but stuck on android logo.
  1. Faiz Orz Post authorJuly 16, 2017 at 11:14 PM

    Make sure Virtualization Technolgy (VT) is enabled from BIOS of your system.
3. MrEarthbound July 24, 2017 at 12:39 AM Reply

  It worked when I used the Android 5.1 image. Didn’t work with the version 6. Also didn’t have to enable Accelerate 3D graphics, because VMware says it’s not supported on that OS anyways. https://www.fosshub.com/Android-x86.html/android-x86-5.1-rc1.iso
  1. borschelrh December 13, 2017 at 10:14 PM

    I had the same problem. I tried version 7.1 and 6.0 and it wouldn’t proceed past the android screen. I enabled 3D acceleration but it stated it is not supported in that version of OS. Tried 5.1 and it installs fine. What is the issue with Android 6 and 7?
Evan February 24, 2017 at 2:52 PM Reply

I have officially created the fastest android device ever.

56 GB of ram, i have 64 on my host PC

128 gb Hard drive,
I have 3 tb

and everything runs great 😀
1. Evan February 24, 2017 at 3:02 PM Reply

  AAAAANNND i have to reinstall it.

  My dumbass thought it would be a good idea to reboot without unmounting the ISO.

  How do I unmount the ISO again? I forgot 😛
  1. Faiz Orz Post authorFebruary 25, 2017 at 10:36 PM

    Disconnect it from the VM settings.
2. Faiz Orz Post authorFebruary 25, 2017 at 10:34 PM Reply

  Wow 😉
  Thanks for sharing your feedback.
KrmCkr February 17, 2017 at 3:05 AM Reply

http://prntscr.com/e9od9k

It is waiting on the android logo screen and it isn’t pass to this screen. What can i do ?
1. Faiz Orz Post authorFebruary 20, 2017 at 2:53 PM Reply

  Enable 3D acceleration from VM settings.
William February 1, 2017 at 11:45 PM Reply

(Answer from other forum). It worked for me.

asked same question in superuser and I found the way to start it. The correct answer is:

From the install/live CD, you just need to change the value of “androidboot.hardware” parameter in the grub command from “Android_x86” to “x86”. You can do this by pressing “Tab” in the boot menu or by editing “isolinux.cfg” file on the installation ISO Image.
If you installed Android-x86 on hard drive,you have to select desired boot option and press e to edit grub command
1. Mukhtar Jafari February 2, 2017 at 2:23 PM Reply

  Thanks for you comprehensive answer dear William
Andrew January 22, 2017 at 6:46 AM Reply

How do you get WiFi to work?
1. Faiz Orz Post authorJanuary 23, 2017 at 10:18 PM Reply

  You can’t make the Wi-Fi work but you can use the Internet via Nat on the VM.
Saif Ali January 6, 2017 at 1:48 PM Reply

Thanks man works great here I had a problem before but then I read your comment about accelerating 3D now it works perfect
1. Mukhtar Jafari January 6, 2017 at 9:27 PM Reply

  Good luck and have Fun! 😀
aj January 2, 2017 at 3:06 AM Reply

Thank You for best Tutorial
and Faiz Orz thanks for feedback(3d)
😉
1. Faiz Orz Post authorJanuary 2, 2017 at 4:27 PM Reply

  Welcome dear, We’re happy that you found this blog helpful.
Svendus December 17, 2016 at 9:59 PM Reply

Sorry for my bad spelling
writw = write
one more question how do you turn an application that locked in portrait view i is laying down in the guist window and mouse behavior are a bit awkward 🙂
1. Faiz Orz Post authorDecember 18, 2016 at 12:47 PM Reply

  Hey, I am sorry but to be honest I have no idea.
Svendus December 17, 2016 at 9:10 PM Reply

Hi Faiz Orz
Thank You for a nice Tutorial
how do you writw @ in the android guest
an can you also run the 64 bit version on VMware® Workstation 12 Pro 12.5.2 build-4638234
1. Faiz Orz Post authorDecember 18, 2016 at 12:45 PM Reply

  Hey dear, That’s easy you can simply write with your keyboard and if you have a touch screen laptop then it also works. Yes you can run 64 bit on VMware 12
AllOutNow December 13, 2016 at 11:42 AM Reply

I’m having difficulty figuring out how to install MVware tools on the Android 6 VM. I tried to find help on the internet but failed to locate any usable instructions. Any ideas?
1. Faiz Orz Post authorDecember 14, 2016 at 6:46 PM Reply

  No dear, You can’t install VMware Tools.
DeMo November 22, 2016 at 7:21 PM Reply

I do all steps but i get the message after reboot
Failed to find cpu0 device node
1. Faiz Orz Post authorNovember 22, 2016 at 8:59 PM Reply

  Can you send me the Screenshot?
  1. DeMo November 23, 2016 at 1:12 PM

    Here is the screenshot

    https://1drv.ms/i/s!At3_PErf4JJmg2kqLLBt-Ue_mFrK
abulhol November 22, 2016 at 4:04 PM Reply

I have the same issue on Workstation 12: stuck a prompt, flickering every three seconds. “accelerate 3d graphics” does not help.
1. Faiz Orz Post authorNovember 22, 2016 at 7:02 PM Reply

  Enable Accelerate 3D Graphics from Virtual machine settings once again and reboot your machine and computer then it should work correctly.
  1. abulhol November 23, 2016 at 1:39 PM

    Thank you for the reply, but it won’t help. Maybe it is related to the host hardware (HP Elitebook 8440p, virtualisation in BIOS enabled, TXT disabled).
    My VM settings are:
    10 GB IDE hard disk
    Display: Accelerate 3D graphics enabled, 256 MB graphics memory
    I also installed Android 5.1, that one works.
Hopper November 11, 2016 at 4:47 PM Reply

Had the same issue of stalling at boot… followed suggestion to accelerate 3D graphics… Booted right up. Thanks.
1. Faiz Orz Post authorNovember 11, 2016 at 8:51 PM Reply

  Welcome dear, Thanks for sharing your feedback.
Johan October 26, 2016 at 7:57 PM Reply

I had the same issue, stopped at prompt, screen flickering every 3 sec.
Per Faiz i did enable the ‘Accelerate 3D Graphics, reboot and it continues into Android
1. Faiz Orz Post authorOctober 26, 2016 at 11:14 PM Reply

  Thanks for sharing your feedback dear.
Jasper October 8, 2016 at 12:23 AM Reply

Happens to me as well. Screen is flickering every 3 seconds. I assume it has problems starting X or something like that. Can’t get it to run on my VMware Fusion 8.5.0 installation on MacBook Pro.
Muayed October 2, 2016 at 11:01 PM Reply

Boot stop at A N D R O I D root@x86
Why ????
1. Faiz Orz Post authorOctober 4, 2016 at 12:05 AM Reply

  Maybe you’re doing something wrong!
  1. Yohann October 10, 2016 at 12:16 AM

    Same for me stop at root@x86:/ # and for the fourth time the same.
  2. Faiz Orz Post authorOctober 14, 2016 at 4:50 PM

    Enable Accelerate 3D graphics from Virtual machine settings.
